OBATABITECH / DEVICE DOSSIER
CPU / AMD
EPYC 7601
Harga referensiRp 65.000.000
Socket CPUSocket SP3 (LGA 4094)Jumlah Core32Jumlah Thread64Base Clock2.20 GHz
Kembali ke katalogAMD EPYC 7601
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Naples / Zen 1 (Socket SP3)
Performa
- Prosesor
- 32 Cores (4 Zeppelin dies x 8 cores), 64 Threads, Base 2.20 GHz, Boost 3.20 GHz (All-core boost 2.70 GHz), L3 64 MB (8 x 8 MB CCX)
- Grafis
- None (Server Headless / ASPEED BMC)
- Socket CPU

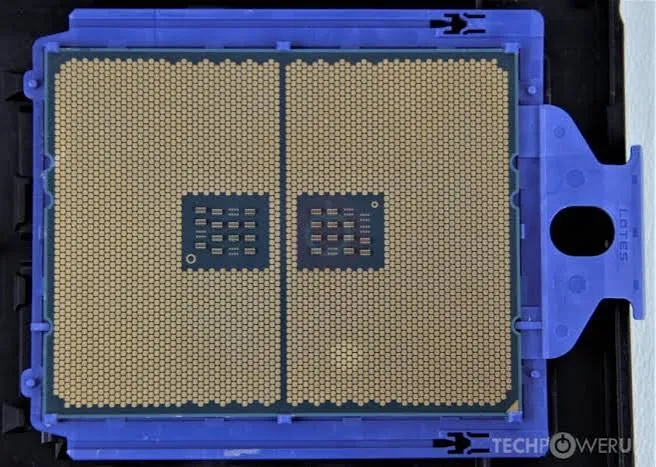

- Socket SP3 (LGA 4094)
- Chipset Kompatibel
- SoC Monolithic (Motherboard SP3 Enterprise)
- Jumlah Core
- 32
- Jumlah Thread
- 64
- Base Clock
- 2.20 GHz
- Boost / Turbo Clock
- 3.20 GHz (All-core boost 2.70 GHz)
- L1 Cache
- 3 MB (32 x 64 KB I + 32 x 32 KB D)
- L2 Cache
- 16 MB (32 x 512 KB)
- L3 Cache
- 64 MB (8 x 8 MB CCX)
- Kecepatan RAM Maksimal
- DDR4-2666
- Jalur PCIe

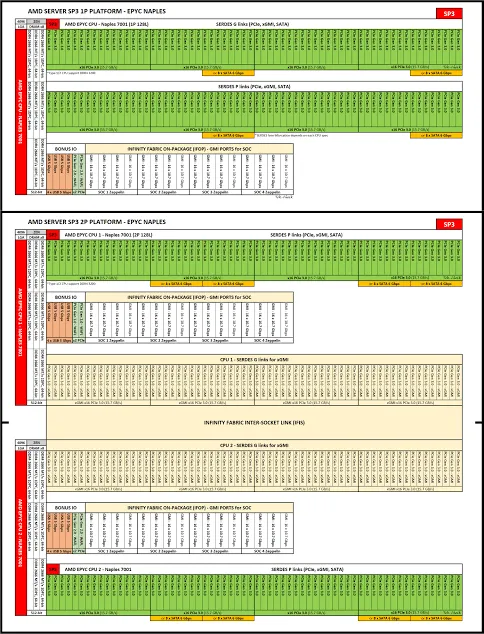

- PCIe 3.0 (128 Lanes)
- Litografi / Proses
- 14nm FinFET (GlobalFoundries)
- TDP / Konsumsi Daya
- 180W TDP
- Memori
- DDR4-2666 (8-Channel Octa-channel ECC RDIMM/LRDIMM, Max 2 TB)
Lainnya
- Rilis
- 2017-06-20
- Sumber harga
- AMD Enterprise MSRP ($4,200)
- Harga diperbarui
- 2026-09-07
- integrated graphics
- none
- memory channels
- 8
- memory max gb
- 2048
- tdp w
- 180
