OBATABITECH / DEVICE DOSSIER
CPU / AMD

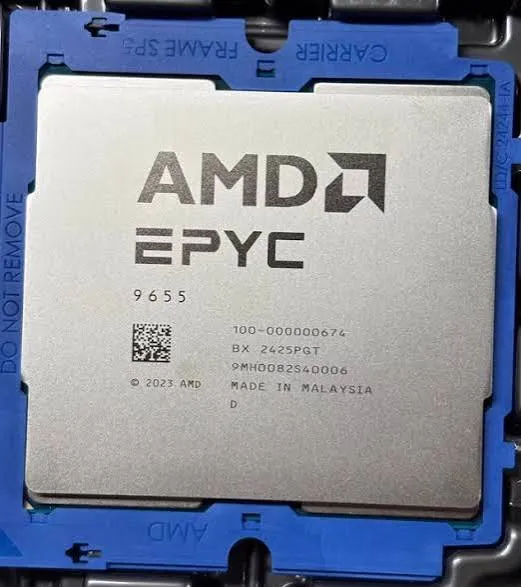

EPYC 9655
Harga referensiRp 245.000.000
Socket CPUSocket SP5 (LGA 6096)Jumlah Core96Jumlah Thread192Base Clock2.60 GHz
Kembali ke katalogAMD EPYC 9655
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Turin / Zen 5 (Socket SP5)
Performa
- Prosesor
- 96 Cores (12 Zen 5 CCDs x 8 cores), 192 Threads, Base 2.60 GHz, Boost 4.50 GHz, L3 384 MB (12 x 32 MB)
- Grafis
- None (Server Headless / ASPEED AST2600)
- Socket CPU
- Socket SP5 (LGA 6096)
- Chipset Kompatibel
- SoC Monolithic (Motherboard SP5 Enterprise)
- Jumlah Core
- 96
- Jumlah Thread
- 192
- Base Clock
- 2.60 GHz
- Boost / Turbo Clock
- 4.50 GHz
- L1 Cache
- 7.68 MB (96 x 48 KB I + 96 x 32 KB D)
- L2 Cache
- 96 MB (96 x 1 MB)
- L3 Cache
- 384 MB (12 x 32 MB)
- Kecepatan RAM Maksimal
- DDR5-6400
- Jalur PCIe
- PCIe 5.0 (128 Lanes, CXL 2.0)
- Litografi / Proses
- TSMC 4nm (CCDs) + 6nm IOD
- TDP / Konsumsi Daya
- 400W TDP (cTDP 320W-500W)
- Memori
- DDR5-6000 / DDR5-6400 (12-Channel Dodeca-channel ECC RDIMM, Max 9 TB)
Lainnya
- Rilis
- 2024-10-10
- Sumber harga
- AMD Enterprise MSRP ($11,850)
- Harga diperbarui
- 2026-09-07
- integrated graphics
- none
- memory channels
- 12
- memory max gb
- 9216
- tdp w
- 400
