OBATABITECH / DEVICE DOSSIER
GPU / AMD

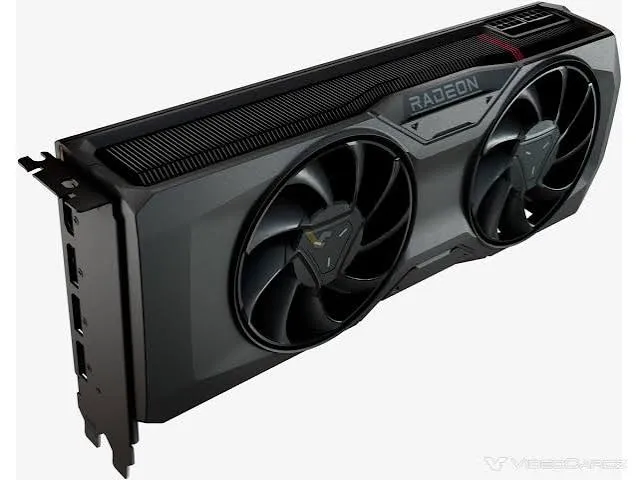

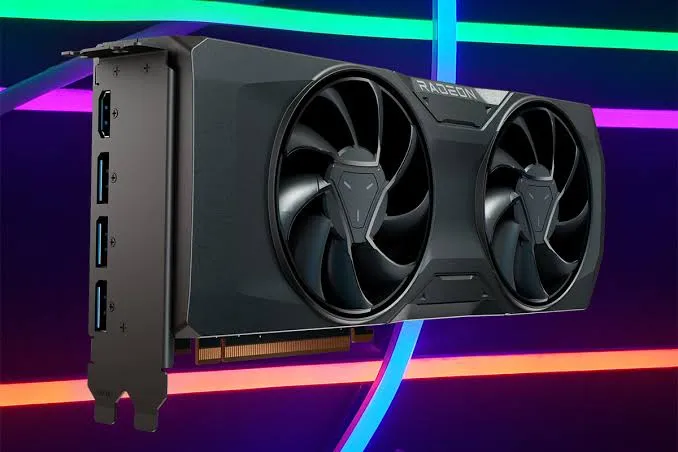

Radeon RX 7800 XT
Harga referensiRp 8.900.000
Chip GPUNavi 32 XTKapasitas VRAM16 GBTipe Memori VRAMGDDR6Lebar Bus Memori256-bit
Kembali ke katalogAMD Radeon RX 7800 XT
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- RDNA 3 (Chiplet Design) (Navi 32 XT)
Performa
- Prosesor
- RDNA 3 (Chiplet Design) (Navi 32 XT), 3840 Stream Processors (60 Compute Units), Base 1295 MHz, Boost 2430 MHz (Game Clock 2124 MHz)
- Grafis
- AMD Radeon RX 7800 XT (16 GB GDDR6)
- Chip GPU
- Navi 32 XT
- Jumlah Core
- 3840 Stream Processors (60 Compute Units)
- Tensor Cores / AI
- 120 AI Accelerators
- Ray Tracing Cores
- 60 Ray Accelerators (2nd Gen)
- Base Clock
- 1295 MHz
- Boost / Turbo Clock
- 2430 MHz (Game Clock 2124 MHz)
- L2 Cache
- 64 MB AMD Infinity Cache (across 4 MCDs)
- Jalur PCIe
- PCIe 4.0 x16
- Kapasitas VRAM
- 16 GB
- Tipe Memori VRAM
- GDDR6
- Lebar Bus Memori
- 256-bit
- Bandwidth Memori
- 624.1 GB/s (19.5 Gbps) + 64 MB Infinity Cache
- Litografi / Proses
- TSMC 5nm GCD + 4x TSMC 6nm MCD
- TDP / Konsumsi Daya
- 263W TGP
- Konektor Daya
- 2x 8-pin PCIe
- Ukuran Slot / Dimensi
- 2.5-Slot, 267 mm
- Memori
- 16 GB GDDR6, 256-bit, 624.1 GB/s (19.5 Gbps) + 64 MB Infinity Cache (64 MB AMD Infinity Cache (across 4 MCDs))
Layar & kamera
- Layar
- 3x DisplayPort 2.1 (UHBR 13.5), 1x HDMI 2.1a
Lainnya
- Rilis
- 2023-09-06
- Sumber harga
- Authorized Reseller Indonesia 2024-2026
- Harga diperbarui
- 2026-09-07
- gpu board power w
- 263
- gpu length mm
- 267
- gpu slot width
- 2.5-slot
- gpu vram gb
- 16
