OBATABITECH / DEVICE DOSSIER
CPU / AMD

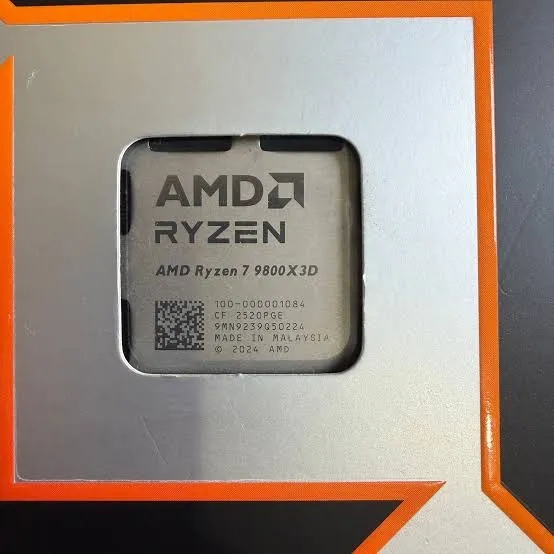

Ryzen 7 9800X3D
Harga referensiRp 8.299.000
Socket CPUSocket AM5 (LGA 1718)Jumlah Core8Jumlah Thread16Base Clock4.70 GHz
Kembali ke katalogAMD Ryzen 7 9800X3D
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Granite Ridge / 2nd Gen 3D V-Cache (Socket AM5)
Performa
- Prosesor
- 8 Cores (1 CCD x 8 Zen 5 cores, 2nd Gen 3D V-Cache), 16 Threads, Base 4.70 GHz, Boost 5.20 GHz (Fully Unlocked Overclocking), L3 96 MB (32 MB + 64 MB 2nd-gen Reverse-Stacked 3D V-Cache)
- Grafis
- AMD Radeon Graphics (2 RDNA 2 CUs, 2200 MHz)
- Socket CPU
- Socket AM5 (LGA 1718)
- Chipset Kompatibel
- AMD X870E, X870, B850, B840, X670E, X670, B650E, B650, A620
- Jumlah Core
- 8
- Jumlah Thread
- 16
- Base Clock
- 4.70 GHz
- Boost / Turbo Clock
- 5.20 GHz (Fully Unlocked Overclocking)
- Unlocked untuk Overclocking
- Ya
- L1 Cache
- 640 KB (8 x 48 KB I + 8 x 32 KB D)
- L2 Cache
- 8 MB (8 x 1 MB)
- L3 Cache
- 96 MB (32 MB + 64 MB 2nd-gen Reverse-Stacked 3D V-Cache)
- Kecepatan RAM Maksimal
- 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600
- Jalur PCIe
- PCIe 5.0 (28 Lanes: 16 GPU + 4+4 NVMe + 4 Chipset)
- Dukungan NVMe
- Boot, RAID0, RAID1, RAID5, RAID10
- Litografi / Proses
- TSMC 4nm (Compute CCD) + TSMC 6nm IOD
- TDP / Konsumsi Daya
- 120W TDP
- Memori
- DDR5-5600 native / DDR5-6000/6400 1:1 sweet spot (Dual-channel, Max 192 GB)
Lainnya
- Rilis
- 2024-11-07
- Sumber harga
- AMD Official Indonesia
- Harga diperbarui
- 2026-09-07
- integrated graphics
- AMD Radeon Graphics (2 RDNA 2 CUs, 2200 MHz)
- memory channels
- 2
- memory max gb
- 192
- tdp w
- 120
