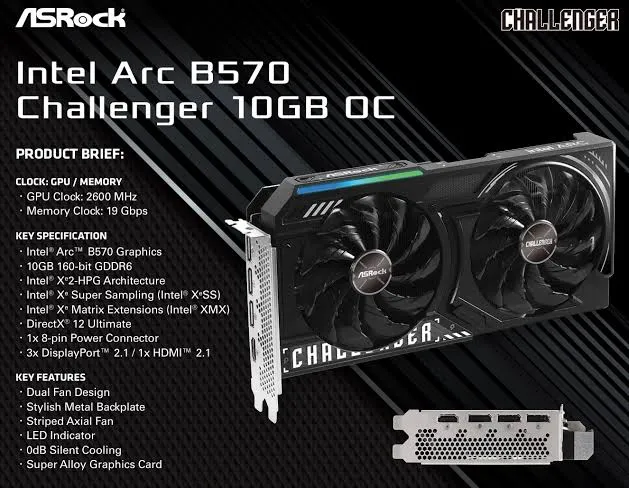

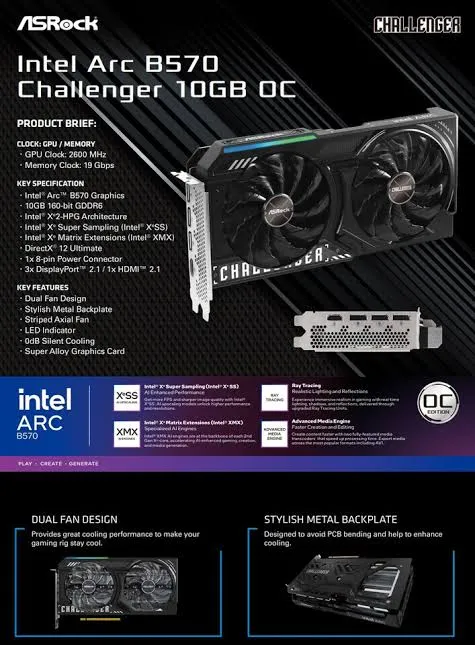

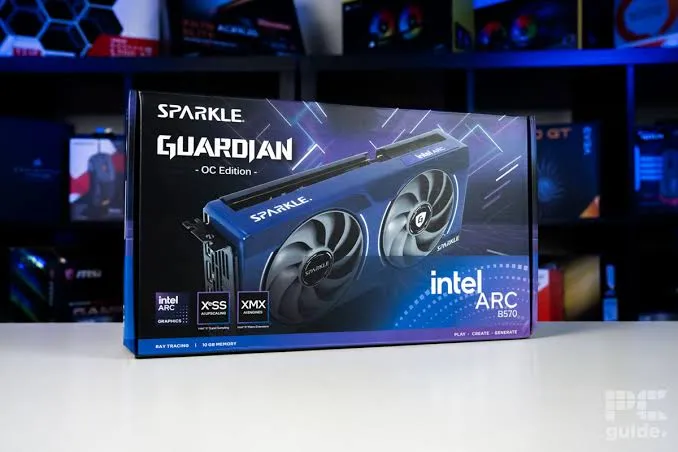

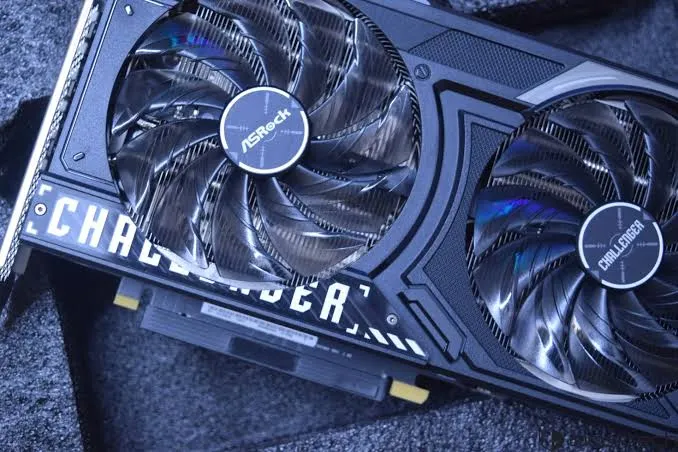

Name: Intel Arc B570
Brand: Intel

Memeriksa pembaruan…

Compare#intel-arc-b570

Tag

gpuintelbattlemagexe2arc-b570

Kelengkapan data · 100%

Varian: Xe2-HPG (Battlemage) (Battlemage BMG-G21)

Harga diperiksa: 2026-09-07

Sumber harga: Intel MSRP Peluncuran Resmi ($219 USD)

Kelengkapan mengukur isian data, bukan kualitas perangkat. Harga dan konfigurasi perlu dicocokkan dengan sumber.

Identitas

Family SKU

Xe2-HPG (Battlemage) (Battlemage BMG-G21)

Performa

Prosesor

Xe2-HPG (Battlemage) (Battlemage BMG-G21), 2304 Shading Units (18 Xe2 Cores), Base 2500 MHz, Boost 2600 MHz

Grafis

Intel Arc B570 (10 GB GDDR6)

Chip GPU

Battlemage BMG-G21

Jumlah Core

2304 Shading Units (18 Xe2 Cores)

Tensor Cores / AI

144 Intel XMX Engines (2nd Gen Xe2)

Ray Tracing Cores

18 Ray Tracing Units (2nd Gen)

Base Clock

2500 MHz

Boost / Turbo Clock

2600 MHz

L2 Cache

12.0 MB L2 Cache

Kapasitas VRAM

10 GB

Tipe Memori VRAM

GDDR6

Lebar Bus Memori

160-bit

Bandwidth Memori

380.0 GB/s (19.0 Gbps)

Litografi / Proses

TSMC N4P (4nm)

TDP / Konsumsi Daya

150W TBP

Konektor Daya

1x 8-pin PCIe

Rekomendasi PSU

500W PSU

Ukuran Slot / Dimensi

Dual-Slot (2-slot), 220 mm

Jalur PCIe

PCIe 4.0 x8

Memori

10 GB GDDR6, 160-bit, 380.0 GB/s (19.0 Gbps) (12.0 MB L2 Cache)

Layar & kamera

Layar

3x DisplayPort 2.1 (UHBR 13.5), 1x HDMI 2.1

Lainnya

Rilis

2025-01-16

Sumber harga

Intel MSRP Peluncuran Resmi ($219 USD)

Harga diperbarui

2026-09-07
