OBATABITECH / DEVICE DOSSIER
GPU / NVIDIA

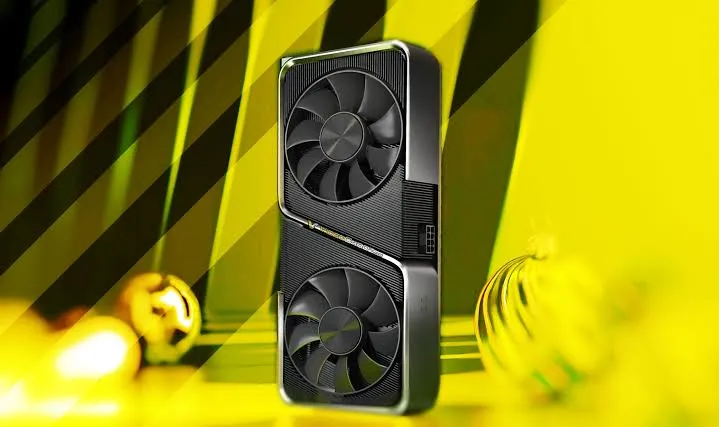

GeForce RTX 4060
Harga referensiRp 5.469.000
Chip GPUAD107-400-A1Kapasitas VRAM8 GBTipe Memori VRAMGDDR6Lebar Bus Memori128-bit
Kembali ke katalogNVIDIA GeForce RTX 4060
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Ada Lovelace (AD107-400-A1)
Performa
- Prosesor
- Ada Lovelace (AD107-400-A1), 3072 CUDA Cores (24 SMs), Base 1830 MHz, Boost 2460 MHz
- Grafis
- NVIDIA GeForce RTX 4060 (8 GB GDDR6)

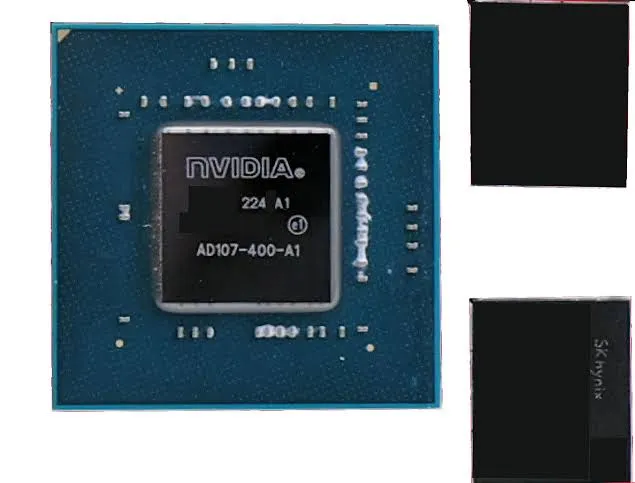

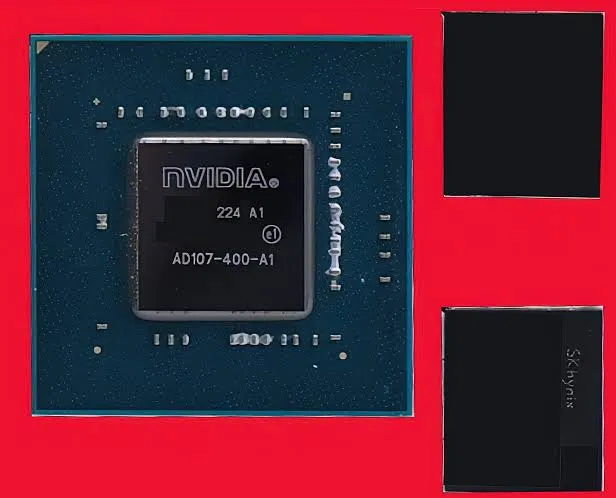

- Chip GPU
- AD107-400-A1
- Jumlah Core
- 3072 CUDA Cores (24 SMs)
- Tensor Cores / AI
- 96 Tensor Cores (4th Gen)
- Ray Tracing Cores
- 24 RT Cores (3rd Gen)
- Base Clock
- 1830 MHz
- Boost / Turbo Clock
- 2460 MHz
- L2 Cache
- 24 MB L2 Cache
- Jalur PCIe
- PCIe 4.0 x8
- Kapasitas VRAM
- 8 GB
- Tipe Memori VRAM
- GDDR6
- Lebar Bus Memori
- 128-bit
- Bandwidth Memori
- 272.0 GB/s (17.0 Gbps) - Efektif 453 GB/s via 24 MB L2 Cache
- Litografi / Proses
- TSMC 4N (Custom NVIDIA 5nm)
- TDP / Konsumsi Daya
- 115W TGP (Gaming riil ~110W)
- Konektor Daya
- 1x 8-pin PCIe
- Ukuran Slot / Dimensi
- Dual-Slot (2-slot), Compact ITX ~200 mm
- Memori
- 8 GB GDDR6, 128-bit, 272.0 GB/s (17.0 Gbps) - Efektif 453 GB/s via 24 MB L2 Cache (24 MB L2 Cache)
Layar & kamera
- Layar
- 3x DisplayPort 1.4a, 1x HDMI 2.1a
Lainnya
- Rilis
- 2023-06-29
- Sumber harga
- NVIDIA Indonesia — official starting price
- Harga diperbarui
- 2026-10-04
- gpu board power w
- 115
- gpu length mm
- 200
- gpu slot width
- 2-slot
- gpu vram gb
- 8
- price source url
- https://www.nvidia.com/id-id/geforce/graphics-cards/40-series/rtx-4060-4060ti/
