OBATABITECH / DEVICE DOSSIER
GPU / NVIDIA

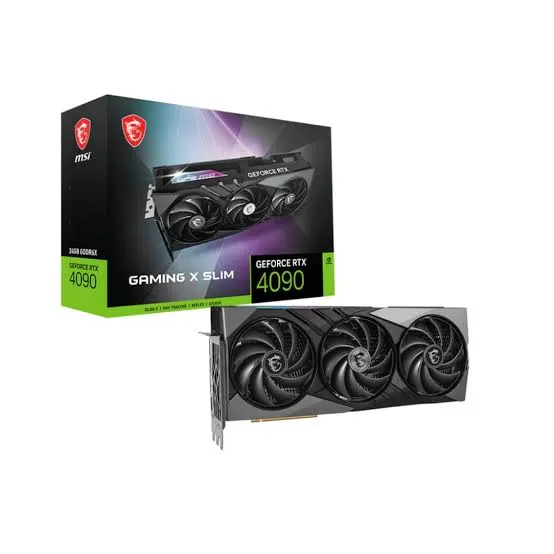

GeForce RTX 4090
Harga peluncuran IndonesiaRp 31.000.000
Chip GPUAD102-300-A1Kapasitas VRAM24 GBTipe Memori VRAMGDDR6X (Micron)Lebar Bus Memori384-bit
Kembali ke katalogNVIDIA GeForce RTX 4090
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Ada Lovelace (AD102-300-A1)
Performa
- Prosesor
- Ada Lovelace (AD102-300-A1), 16384 CUDA Cores (128 SMs), Base 2235 MHz, Boost 2520 MHz
- Grafis
- NVIDIA GeForce RTX 4090 (24 GB GDDR6X (Micron))
- Chip GPU
- AD102-300-A1
- Jumlah Core
- 16384 CUDA Cores (128 SMs)
- Tensor Cores / AI
- 512 Tensor Cores (4th Gen with Transformer Engine)
- Ray Tracing Cores
- 128 RT Cores (3rd Gen with SER)
- Base Clock
- 2235 MHz
- Boost / Turbo Clock
- 2520 MHz
- L2 Cache
- 72 MB L2 Cache
- Jalur PCIe
- PCIe 4.0 x16
- Kapasitas VRAM
- 24 GB
- Tipe Memori VRAM
- GDDR6X (Micron)
- Lebar Bus Memori
- 384-bit
- Bandwidth Memori
- 1008.0 GB/s (1.01 TB/s, 21.0 Gbps)
- Litografi / Proses
- TSMC 4N (5nm)
- TDP / Konsumsi Daya
- 450W TGP (Unlockable hingga 600W)
- Konektor Daya
- 1x 16-pin (12V-2x6 / 12VHPWR), adapter 4x 8-pin
- Memori
- 24 GB GDDR6X (Micron), 384-bit, 1008.0 GB/s (1.01 TB/s, 21.0 Gbps) (72 MB L2 Cache)
Layar & kamera
- Layar
- 3x DisplayPort 1.4a, 1x HDMI 2.1a
Lainnya
- Rilis
- 2022-10-12
- Sumber harga
- NVIDIA SRP Resmi Peluncuran Indonesia
- Harga diperbarui
- 2026-09-07
- gpu board power w
- 450
- gpu height mm
- 137
- gpu length mm
- 137
- gpu vram gb
- 24
