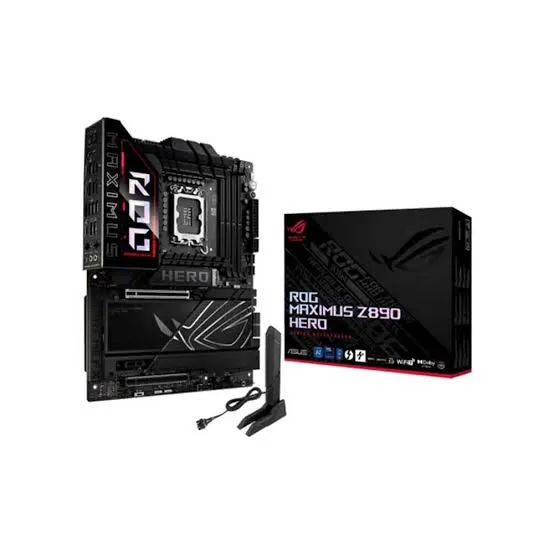

ASUS ROG MAXIMUS Z890 HERO — Technologia Universe

1 / 5

Kembali ke katalogASUS ROG MAXIMUS Z890 HERO

Tag

motherboardasuslga1851z890thunderbolt4wifi7rog-maximus

TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: Intel Z890 (LGA 1851), ATX (305 x 244 mm), VRM 22+1+2+2 Power Stages (110A Smart Power Stage)
Socket CPU: LGA 1851
Chipset Kompatibel: Intel Z890
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR5-8800+ MT/s (OC CUDIMM & UDIMM) / Intel XMP
Jumlah Port SATA: 4

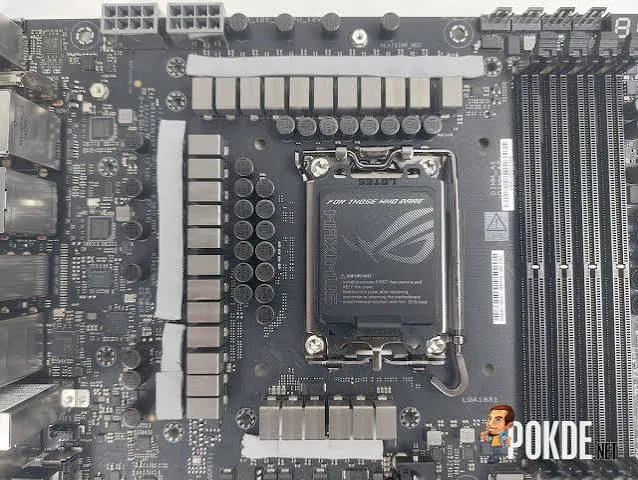

Fasa VRM & Desain Daya: 22+1+2+2 Power Stages (110A Smart Power Stage)
Konektor Daya CPU: 2x 8-pin ProCool II EPS 12V
Tipe Memori (RAM): DDR5
Jumlah Slot DIMM: 4x DDR5 DIMM (Dual Channel, NitroPath DRAM)
Kapasitas RAM Maksimal: 192 GB (4x 48 GB)
Slot Ekspansi PCIe: 1x PCIe 5.0 x16 (PCIe Slot Q-Release Slim), 1x PCIe 4.0 x16 @ x4
Slot M.2 NVMe: 6x M.2 total (3x PCIe 5.0 x4 + 3x PCIe 4.0 x4, M.2 Q-Release & Q-Slide)
Port SATA 6Gb/s: 4x SATA 6Gb/s
Port I/O Panel Belakang: 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 20Gbps Type-C, 8x USB 10Gbps, HDMI 2.1
Jaringan (LAN & Wi-Fi): Intel 2.5GbE LAN + Realtek 5GbE LAN + Wi-Fi 7 (320MHz) + Bluetooth 5.4
Subsistem Audio: ROG SupremeFX ALC4082 + ESS ES9219 QUAD DAC
Fitur Kemudahan Rakit & Diagnostik: PCIe Slot Q-Release Slim (lepas GPU tanpa tombol), M.2 Q-Release, NitroPath DRAM Tech, Wi-Fi Q-Antenna
Memori: 4x DDR5 DIMM (Dual Channel, NitroPath DRAM) DDR5, Max 192 GB (4x 48 GB) (DDR5-8800+ MT/s (OC CUDIMM & UDIMM) / Intel XMP)
Penyimpanan: 6x M.2 total (3x PCIe 5.0 x4 + 3x PCIe 4.0 x4, M.2 Q-Release & Q-Slide), 4x SATA 6Gb/s

Konektivitas: Intel 2.5GbE LAN + Realtek 5GbE LAN + Wi-Fi 7 (320MHz) + Bluetooth 5.4, 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 20Gbps Type-C, 8x USB 10Gbps, HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: Verify exact Core Ultra 200S CPU Support List and BIOS version; motherboard revision may affect support.
cpu support generations: Intel Core Ultra 200S Series
m2 slots detail: 3x PCIe 5.0 x4, 3x PCIe 4.0 x4, M.2 Q-Release & Q-Slide
memory max gb: 192
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 5.0 x16 (PCIe Slot Q-Release Slim), 1x PCIe 4.0 x16 @ x4
