Kembali ke katalogASUS ROG MAXIMUS Z790 HERO

Tag

motherboardasuslga1700z790thunderbolt4rog-maximus

TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: Intel Z790 (LGA 1700), ATX (305 x 244 mm), VRM 20+1 Power Stages (90A Smart Power Stage)
Socket CPU: LGA 1700
Chipset Kompatibel: Intel Z790
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR5-7800+ (OC) / Intel XMP 3.0
Jumlah Port SATA: 6
Fasa VRM & Desain Daya: 20+1 Power Stages (90A Smart Power Stage)
Konektor Daya CPU: 2x 8-pin ProCool II EPS 12V
Tipe Memori (RAM): DDR5
Jumlah Slot DIMM: 4x DDR5 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 192 GB (4x 48 GB)
Slot Ekspansi PCIe: 2x PCIe 5.0 x16 (x16 or x8/x8), 1x PCIe 4.0 x16 @ x4/x4
Slot M.2 NVMe: 5x M.2 total (3x onboard PCIe 4.0 x4 + 2x via bundled ROG Hyper M.2 Card PCIe 5.0 x4)
Port SATA 6Gb/s: 6x SATA 6Gb/s (RAID 0, 1, 5, 10)
Port I/O Panel Belakang: 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 3.2 Gen 2x2 Type-C, 6x USB 3.2 Gen 2, HDMI 2.1
Jaringan (LAN & Wi-Fi): Intel 2.5GbE LAN + Intel Wi-Fi 6E (802.11ax) + Bluetooth 5.3

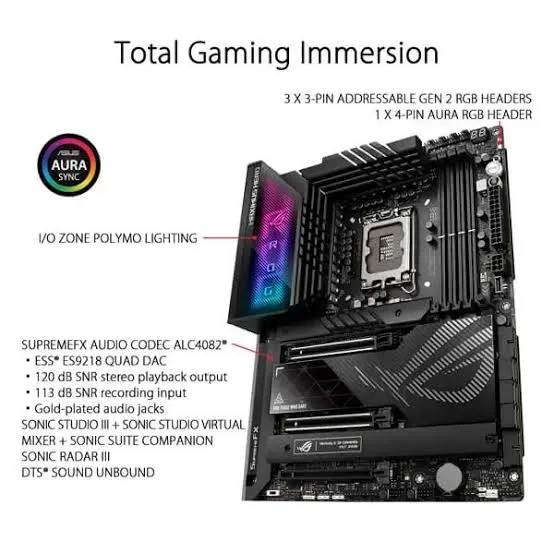

Subsistem Audio: ROG SupremeFX ALC4082 + ESS ES9218 QUAD DAC (32-bit/384kHz)
Fitur Kemudahan Rakit & Diagnostik: PCIe Slot Q-Release, Polymo Lighting Display, BIOS FlashBack, Clear CMOS, Start/FlexKey Button, Q-Code
Memori: 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-7800+ (OC) / Intel XMP 3.0)
Penyimpanan: 5x M.2 total (3x onboard PCIe 4.0 x4 + 2x via bundled ROG Hyper M.2 Card PCIe 5.0 x4), 6x SATA 6Gb/s (RAID 0, 1, 5, 10)

Konektivitas: Intel 2.5GbE LAN + Intel Wi-Fi 6E (802.11ax) + Bluetooth 5.3, 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 3.2 Gen 2x2 Type-C, 6x USB 3.2 Gen 2, HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.
cpu support generations: Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
m2 slots detail: 3x onboard PCIe 4.0 x4, 2x via bundled ROG Hyper M.2 Card PCIe 5.0 x4
memory max gb: 192
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 2x PCIe 5.0 x16 (x16 or x8/x8), 1x PCIe 4.0 x16 @ x4/x4
