OBATABITECH / DEVICE DOSSIER
Motherboard / MSI

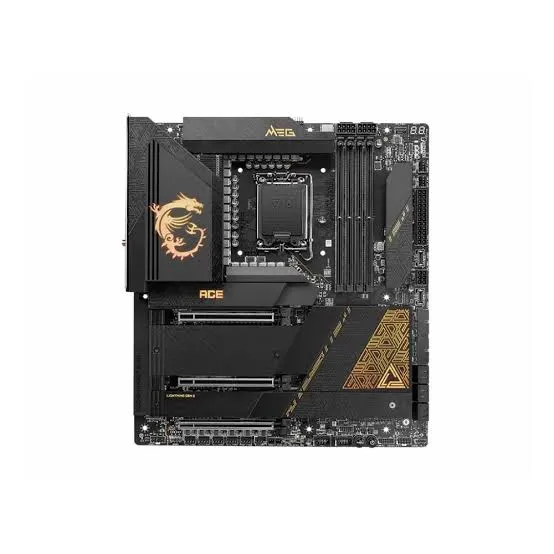

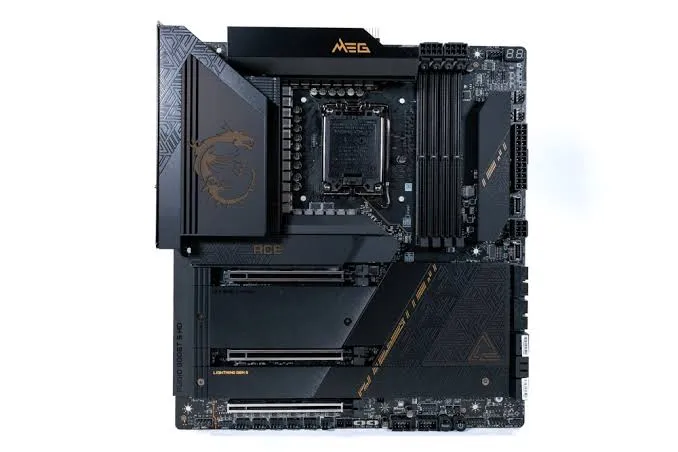

MEG Z790 ACE
Harga referensiRp 11.800.000
Socket CPULGA 1700Chipset KompatibelIntel Z790Form Factor MotherboardE-ATX (305 x 277 mm)Generasi CPU yang didukungIntel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
Kembali ke katalogMSI MEG Z790 ACE
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Intel Z790 (E-ATX (305 x 277 mm))
Performa
- Prosesor
- Intel Z790 (LGA 1700), E-ATX (305 x 277 mm), VRM 24+1+2 Direct Power Phases (105A Smart Power Stage)
- Socket CPU
- LGA 1700
- Chipset Kompatibel
- Intel Z790
- Form Factor Motherboard
- E-ATX (305 x 277 mm)
- Kecepatan RAM Maksimal
- DDR5-7800+ (OC) / Intel XMP 3.0
- Jumlah Port SATA
- 6
- Fasa VRM & Desain Daya
- 24+1+2 Direct Power Phases (105A Smart Power Stage)
- Konektor Daya CPU
- 2x 8-pin EPS 12V
- Tipe Memori (RAM)
- DDR5
- Jumlah Slot DIMM
- 4x DDR5 DIMM (Dual Channel)
- Kapasitas RAM Maksimal
- 192 GB (4x 48 GB)
- Slot Ekspansi PCIe
- 2x PCIe 5.0 x16 (x16 or x8/x8), 1x PCIe 4.0 x16 @ x4
- Slot M.2 NVMe
- 5x M.2 onboard (1x PCIe 5.0 x4 + 4x PCIe 4.0 x4 with Double-Sided Shield Frozr)
- Port SATA 6Gb/s
- 6x SATA 6Gb/s (RAID 0, 1, 5, 10)
- Port I/O Panel Belakang
- 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 3.2 Gen 2x2 Type-C, 7x USB 3.2 Gen 2, Mini DP In
- Jaringan (LAN & Wi-Fi)
- Dual 2.5GbE Intel LAN + Wi-Fi 6E + Bluetooth 5.3
- Subsistem Audio
- Realtek ALC4082 + ESS ES9280AQ Combo DAC/HPA
- Fitur Kemudahan Rakit & Diagnostik
- Smart Button, Flash BIOS Button, Clear CMOS, 2-Digit Debug Code LED, Magnetic M.2 Shield Frozr
- Memori
- 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-7800+ (OC) / Intel XMP 3.0)
- Penyimpanan
- 5x M.2 onboard (1x PCIe 5.0 x4 + 4x PCIe 4.0 x4 with Double-Sided Shield Frozr), 6x SATA 6Gb/s (RAID 0, 1, 5, 10)
Sensor & konektivitas
- Konektivitas
- Dual 2.5GbE Intel LAN + Wi-Fi 6E + Bluetooth 5.3, 2x Thunderbolt 4 Type-C (40Gbps), 1x USB 3.2 Gen 2x2 Type-C, 7x USB 3.2 Gen 2, Mini DP In
Lainnya
- Rilis
- 2024-01-01
- Sumber harga
- Authorized Distributor Indonesia 2024-2026
- Harga diperbarui
- 2026-09-07
- cpu bios update notes
- 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.
- cpu support generations
- Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
- m2 slots detail
- 1x PCIe 5.0 x4, 4x PCIe 4.0 x4 with Double-Sided Shield Frozr
- memory max gb
- 192
- memory module form factor
- UDIMM
- memory registered support
- no
- memory slots total
- 4
- pcie slots detail
- 2x PCIe 5.0 x16 (x16 or x8/x8), 1x PCIe 4.0 x16 @ x4
