TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: AMD B550 (Socket AM4), ATX (305 x 244 mm), VRM 12+2 Phases Digital Twin Power Design (50A DrMOS)
Socket CPU: Socket AM4
Chipset Kompatibel: AMD B550
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR4-4733+ (OC) / AMD D.O.C.P
Jumlah Port SATA: 4
Fasa VRM & Desain Daya: 12+2 Phases Digital Twin Power Design (50A DrMOS)
Konektor Daya CPU: 1x 8-pin Solid Pin EPS 12V
Tipe Memori (RAM): DDR4
Jumlah Slot DIMM: 4x DDR4 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 128 GB (4x 32 GB)

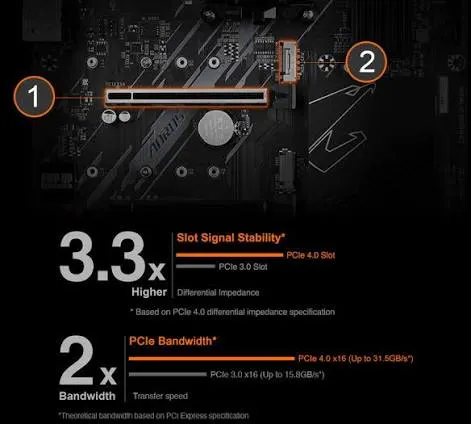

Slot Ekspansi PCIe: 1x PCIe 4.0 x16 (Ultra Durable Armor), 1x PCIe 3.0 x16 @ x2, 1x PCIe 3.0 x16 @ x1, 1x PCIe 3.0 x1
Slot M.2 NVMe: 2x M.2 (1x PCIe 4.0 x4 with Thermal Guard + 1x PCIe 3.0 x4)
Port SATA 6Gb/s: 4x SATA 6Gb/s (RAID 0, 1, 10)
Port I/O Panel Belakang: 2x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0, DisplayPort 1.4, HDMI 2.1
Jaringan (LAN & Wi-Fi): Realtek 2.5GbE LAN
Subsistem Audio: Realtek ALC1200 7.1 HD Audio with WIMA & Nichicon Capacitors
Fitur Kemudahan Rakit & Diagnostik: Q-Flash Plus Button, Pre-installed I/O Shield, Smart Fan 5
Memori: 4x DDR4 DIMM (Dual Channel) DDR4, Max 128 GB (4x 32 GB) (DDR4-4733+ (OC) / AMD D.O.C.P)
Penyimpanan: 2x M.2 (1x PCIe 4.0 x4 with Thermal Guard + 1x PCIe 3.0 x4), 4x SATA 6Gb/s (RAID 0, 1, 10)

Konektivitas: Realtek 2.5GbE LAN, 2x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0, DisplayPort 1.4, HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: CPU support depends on motherboard revision and BIOS; Ryzen 5000/X3D may require BIOS update. Check CPU Support List before purchase.
cpu support generations: AMD Ryzen 3000 Series, AMD Ryzen 3000 G-Series, AMD Ryzen 4000 G-Series, AMD Ryzen 5000 Series, AMD Ryzen 5000 G-Series, AMD Ryzen 5000 X3D Series
m2 slots detail: 1x PCIe 4.0 x4 with Thermal Guard, 1x PCIe 3.0 x4
memory ecc support: conditional
memory max gb: 128
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 4.0 x16 (Ultra Durable Armor), 1x PCIe 3.0 x16 @ x2, 1x PCIe 3.0 x16 @ x1, 1x PCIe 3.0 x1
