OBATABITECH / DEVICE DOSSIER
Motherboard / Gigabyte

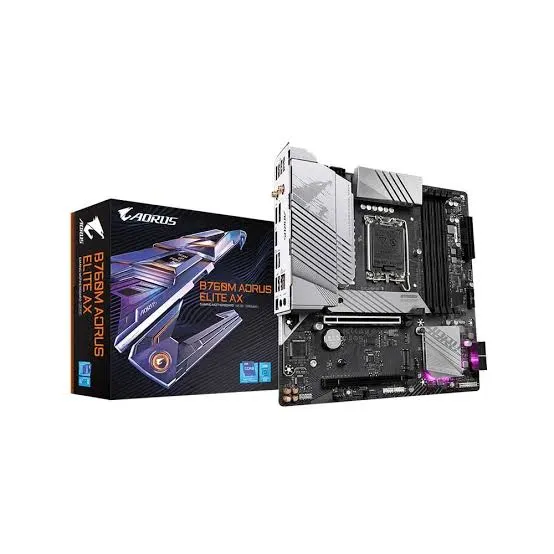

B760M AORUS ELITE AX
Harga referensiRp 2.950.000
Socket CPULGA 1700Chipset KompatibelIntel B760Form Factor MotherboardMicro-ATX (244 x 244 mm)Generasi CPU yang didukungIntel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
Kembali ke katalogGigabyte B760M AORUS ELITE AX
Spesifikasi perangkat /
Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.
Identitas
- Family SKU
- Intel B760 (Micro-ATX (244 x 244 mm))
Performa
- Prosesor
- Intel B760 (LGA 1700), Micro-ATX (244 x 244 mm), VRM 12+1+1 Twin Digital VRM (60A DrMOS)
- Socket CPU
- LGA 1700
- Chipset Kompatibel
- Intel B760
- Form Factor Motherboard
- Micro-ATX (244 x 244 mm)
- Kecepatan RAM Maksimal
- DDR5-7600+ (OC) / Intel XMP 3.0
- Jumlah Port SATA
- 4
- Fasa VRM & Desain Daya
- 12+1+1 Twin Digital VRM (60A DrMOS)
- Konektor Daya CPU
- 1x 8-pin + 1x 4-pin EPS 12V
- Tipe Memori (RAM)
- DDR5
- Jumlah Slot DIMM
- 4x DDR5 DIMM (Dual Channel)
- Kapasitas RAM Maksimal
- 192 GB (4x 48 GB)
- Slot Ekspansi PCIe
- 1x PCIe 4.0 x16 (PCIe EZ-Latch), 1x PCIe 4.0 x16 @ x4
- Slot M.2 NVMe
- 2x M.2 (both PCIe 4.0 x4 with Thermal Guard)
- Port SATA 6Gb/s
- 4x SATA 6Gb/s (RAID 0, 1, 5, 10)
- Port I/O Panel Belakang
- 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 4x USB 2.0, HDMI 2.0, DisplayPort 1.2
- Jaringan (LAN & Wi-Fi)
- Realtek 2.5GbE LAN + Intel Wi-Fi 6E + Bluetooth 5.3
- Subsistem Audio
- Realtek 7.1 HD Audio with Audio Noise Guard
- Fitur Kemudahan Rakit & Diagnostik
- Q-Flash Plus Button, M.2 EZ-Latch, PCIe EZ-Latch, Fully Covered MOSFET Heatsink
- Memori
- 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-7600+ (OC) / Intel XMP 3.0)
- Penyimpanan
- 2x M.2 (both PCIe 4.0 x4 with Thermal Guard), 4x SATA 6Gb/s (RAID 0, 1, 5, 10)
Sensor & konektivitas
- Konektivitas
- Realtek 2.5GbE LAN + Intel Wi-Fi 6E + Bluetooth 5.3, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 4x USB 2.0, HDMI 2.0, DisplayPort 1.2
Lainnya
- Rilis
- 2024-01-01
- Sumber harga
- Authorized Distributor Indonesia 2024-2026
- Harga diperbarui
- 2026-09-07
- cpu bios update notes
- 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.
- cpu support generations
- Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
- m2 slots detail
- both PCIe 4.0 x4 with Thermal Guard
- memory max gb
- 192
- memory module form factor
- UDIMM
- memory registered support
- no
- memory slots total
- 4
- pcie slots detail
- 1x PCIe 4.0 x16 (PCIe EZ-Latch), 1x PCIe 4.0 x16 @ x4
