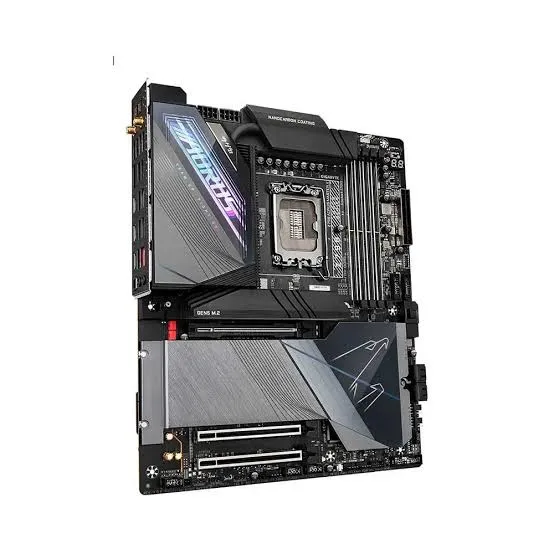

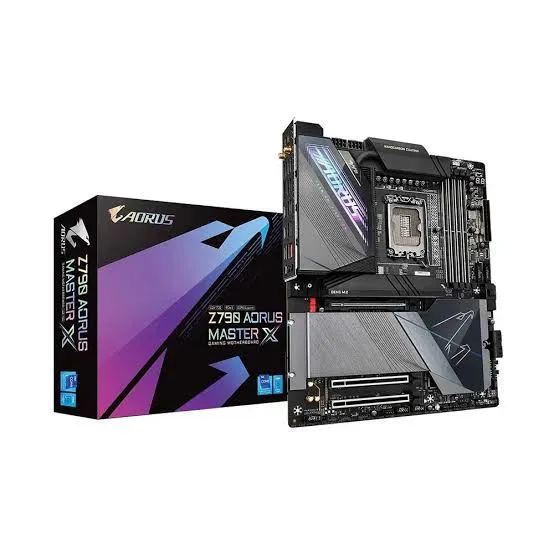

Kembali ke katalogGigabyte Z790 AORUS MASTER X

Tag

motherboardgigabytelga1700z79010gbewifi7aorus

TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: Intel Z790 (LGA 1700), E-ATX (305 x 260 mm), VRM 20+1+2 Digital VRM (105A Smart Power Stage)
Socket CPU: LGA 1700
Chipset Kompatibel: Intel Z790
Form Factor Motherboard: E-ATX (305 x 260 mm)
Kecepatan RAM Maksimal: DDR5-8266+ MT/s (OC) / Intel XMP 3.0
Jumlah Port SATA: 4
Fasa VRM & Desain Daya: 20+1+2 Digital VRM (105A Smart Power Stage)
Konektor Daya CPU: 2x 8-pin Solid Pin EPS 12V
Tipe Memori (RAM): DDR5
Jumlah Slot DIMM: 4x DDR5 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 192 GB (4x 48 GB)
Slot Ekspansi PCIe: 1x PCIe 5.0 x16 (PCIe EZ-Latch Click), 1x PCIe 3.0 x16 @ x4, 1x PCIe 3.0 x16 @ x1
Slot M.2 NVMe: 5x M.2 total (1x PCIe 5.0 x4 + 4x PCIe 4.0 x4 with Thermal Guard XL)
Port SATA 6Gb/s: 4x SATA 6Gb/s (RAID 0, 1, 5, 10)
Port I/O Panel Belakang: 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 7x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, DisplayPort 1.4
Jaringan (LAN & Wi-Fi): Marvell AQtion 10GbE LAN + Qualcomm Wi-Fi 7 (320MHz) + Bluetooth 5.3
Subsistem Audio: Realtek ALC1220-VB + ESS SABRE Hi-Fi 9118 DAC
Fitur Kemudahan Rakit & Diagnostik: PCIe EZ-Latch Click, M.2 EZ-Latch Click, Q-Flash Plus, Clear CMOS, Debug Code LED, Backplate Armor
Memori: 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-8266+ MT/s (OC) / Intel XMP 3.0)
Penyimpanan: 5x M.2 total (1x PCIe 5.0 x4 + 4x PCIe 4.0 x4 with Thermal Guard XL), 4x SATA 6Gb/s (RAID 0, 1, 5, 10)

Konektivitas: Marvell AQtion 10GbE LAN + Qualcomm Wi-Fi 7 (320MHz) + Bluetooth 5.3, 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 7x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, DisplayPort 1.4

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.
cpu support generations: Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
m2 slots detail: 1x PCIe 5.0 x4, 4x PCIe 4.0 x4 with Thermal Guard XL
memory max gb: 192
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 5.0 x16 (PCIe EZ-Latch Click), 1x PCIe 3.0 x16 @ x4, 1x PCIe 3.0 x16 @ x1
