TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: AMD B550 (Socket AM4), ATX (305 x 244 mm), VRM 12+2 Teamed Power Stages (50A DrMOS)
Socket CPU: Socket AM4
Chipset Kompatibel: AMD B550
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR4-5100+ (OC) / AMD D.O.C.P
Jumlah Port SATA: 6
Fasa VRM & Desain Daya: 12+2 Teamed Power Stages (50A DrMOS)
Konektor Daya CPU: 1x 8-pin + 1x 4-pin ProCool EPS 12V
Tipe Memori (RAM): DDR4
Jumlah Slot DIMM: 4x DDR4 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 128 GB (4x 32 GB)
Slot Ekspansi PCIe: 1x PCIe 4.0 x16 (CPU SafeSlot), 1x PCIe 3.0 x16 @ x4, 3x PCIe 3.0 x1
Slot M.2 NVMe: 2x M.2 (1x PCIe 4.0 x4 CPU + 1x PCIe 3.0 x4 Chipset with heatsinks)
Port SATA 6Gb/s: 6x SATA 6Gb/s (RAID 0, 1, 10)

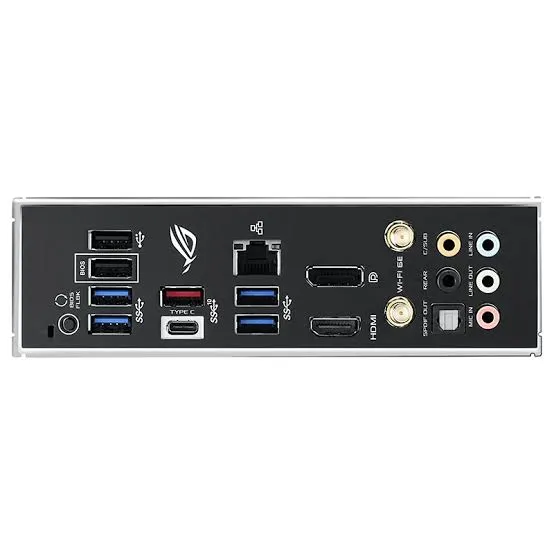

Port I/O Panel Belakang: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, HDMI 2.1, DisplayPort 1.2
Jaringan (LAN & Wi-Fi): Intel I225-V 2.5GbE LAN + Wi-Fi 6E (802.11ax) + Bluetooth 5.2
Subsistem Audio: ROG SupremeFX S1220A Codec + Dual OP-AMPs + Optical S/PDIF Out
Fitur Kemudahan Rakit & Diagnostik: BIOS FlashBack Button, Q-LED, Pre-mounted I/O Shield
Memori: 4x DDR4 DIMM (Dual Channel) DDR4, Max 128 GB (4x 32 GB) (DDR4-5100+ (OC) / AMD D.O.C.P)
Penyimpanan: 2x M.2 (1x PCIe 4.0 x4 CPU + 1x PCIe 3.0 x4 Chipset with heatsinks), 6x SATA 6Gb/s (RAID 0, 1, 10)

Konektivitas: Intel I225-V 2.5GbE LAN + Wi-Fi 6E (802.11ax) + Bluetooth 5.2, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, HDMI 2.1, DisplayPort 1.2

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: CPU support depends on motherboard revision and BIOS; Ryzen 5000/X3D may require BIOS update. Check CPU Support List before purchase.
cpu support generations: AMD Ryzen 3000 Series, AMD Ryzen 3000 G-Series, AMD Ryzen 4000 G-Series, AMD Ryzen 5000 Series, AMD Ryzen 5000 G-Series, AMD Ryzen 5000 X3D Series
m2 slots detail: 1x PCIe 4.0 x4 CPU, 1x PCIe 3.0 x4 Chipset with heatsinks
memory ecc support: conditional
memory max gb: 128
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 4.0 x16 (CPU SafeSlot), 1x PCIe 3.0 x16 @ x4, 3x PCIe 3.0 x1
