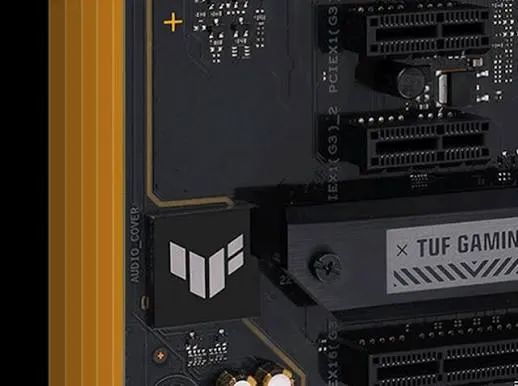

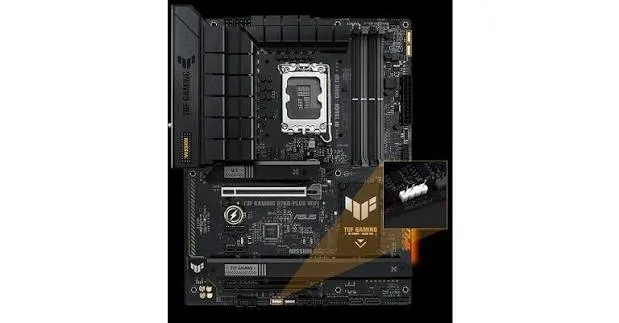

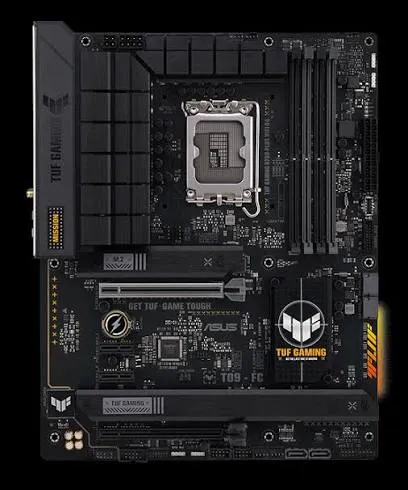

Kembali ke katalogASUS TUF GAMING B760-PLUS WIFI

Tag

motherboardasuslga1700b760ddr5tuf-gaming

TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: Intel B760 (LGA 1700), ATX (305 x 244 mm), VRM 12+1 DrMOS Power Stages (60A)
Socket CPU: LGA 1700
Chipset Kompatibel: Intel B760
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR5-7200+ (OC) / Intel XMP 3.0
Jumlah Port SATA: 4
Fasa VRM & Desain Daya: 12+1 DrMOS Power Stages (60A)
Konektor Daya CPU: 1x 8-pin + 1x 4-pin EPS 12V
Tipe Memori (RAM): DDR5
Jumlah Slot DIMM: 4x DDR5 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 192 GB (4x 48 GB)
Slot Ekspansi PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x16 @ x4, 2x PCIe 3.0 x1
Slot M.2 NVMe: 3x M.2 (all PCIe 4.0 x4 with heatsinks)
Port SATA 6Gb/s: 4x SATA 6Gb/s (RAID 0, 1, 5, 10)

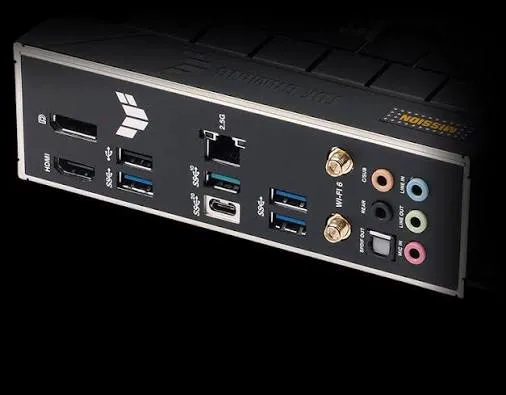

Port I/O Panel Belakang: 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 1x DisplayPort 1.4, 1x HDMI 2.1
Jaringan (LAN & Wi-Fi): Realtek 2.5GbE LAN + Wi-Fi 6 (802.11ax) + Bluetooth 5.2
Subsistem Audio: Realtek 7.1 Surround Sound HD Audio CODEC
Fitur Kemudahan Rakit & Diagnostik: M.2 Q-Latch, Q-LED, SafeSlot Core+, TUF Protection Component Shielding
Memori: 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-7200+ (OC) / Intel XMP 3.0)
Penyimpanan: 3x M.2 (all PCIe 4.0 x4 with heatsinks), 4x SATA 6Gb/s (RAID 0, 1, 5, 10)

Konektivitas: Realtek 2.5GbE LAN + Wi-Fi 6 (802.11ax) + Bluetooth 5.2, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 1x DisplayPort 1.4, 1x HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.
cpu support generations: Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
m2 slots detail: all PCIe 4.0 x4 with heatsinks
memory max gb: 192
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x16 @ x4, 2x PCIe 3.0 x1
