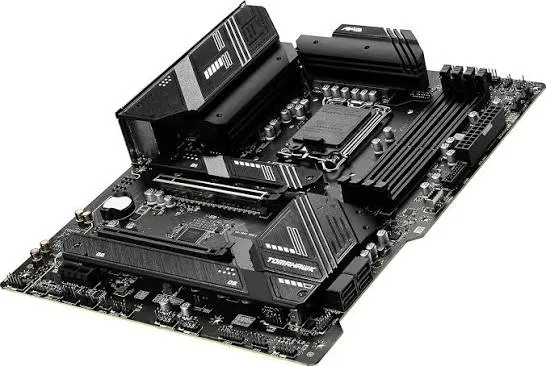

Kembali ke katalogMSI MAG B760 TOMAHAWK WIFI DDR4

Tag

motherboardmsilga1700b760ddr4tomahawk

TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

Prosesor: Intel B760 (LGA 1700), ATX (305 x 244 mm), VRM 12+1+1 Duet Rail Power System (75A DrMOS)
Socket CPU: LGA 1700
Chipset Kompatibel: Intel B760
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR4-5333+ (OC) / Intel XMP 2.0
Jumlah Port SATA: 4
Fasa VRM & Desain Daya: 12+1+1 Duet Rail Power System (75A DrMOS)
Konektor Daya CPU: 2x 8-pin EPS 12V
Tipe Memori (RAM): DDR4
Jumlah Slot DIMM: 4x DDR4 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 128 GB (4x 32 GB)

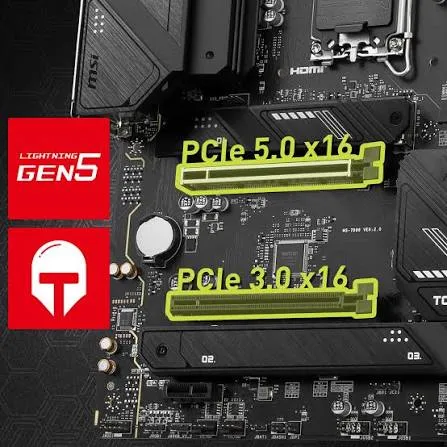

Slot Ekspansi PCIe: 1x PCIe 5.0 x16 (Steel Armor), 1x PCIe 3.0 x16 @ x4

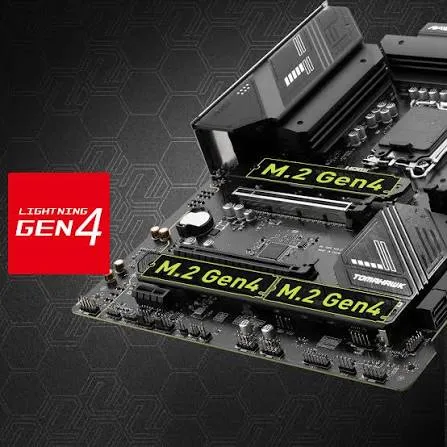

Slot M.2 NVMe: 3x M.2 (all PCIe 4.0 x4 with M.2 Shield Frozr)
Port SATA 6Gb/s: 4x SATA 6Gb/s (RAID 0, 1, 5, 10)
Port I/O Panel Belakang: 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 2, 4x USB 2.0, DisplayPort 1.4, HDMI 2.1
Jaringan (LAN & Wi-Fi): Realtek 2.5GbE LAN + Intel Wi-Fi 6E + Bluetooth 5.3
Subsistem Audio: Realtek ALC897 7.1 HD Audio
Fitur Kemudahan Rakit & Diagnostik: EZ Debug LED, M.2 Shield Frozr, Extended Heatsink
Memori: 4x DDR4 DIMM (Dual Channel) DDR4, Max 128 GB (4x 32 GB) (DDR4-5333+ (OC) / Intel XMP 2.0)
Penyimpanan: 3x M.2 (all PCIe 4.0 x4 with M.2 Shield Frozr), 4x SATA 6Gb/s (RAID 0, 1, 5, 10)

Konektivitas: Realtek 2.5GbE LAN + Intel Wi-Fi 6E + Bluetooth 5.3, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 2, 4x USB 2.0, DisplayPort 1.4, HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: 13th/14th Gen may require BIOS update depending on board revision and installed BIOS; verify CPU Support List.

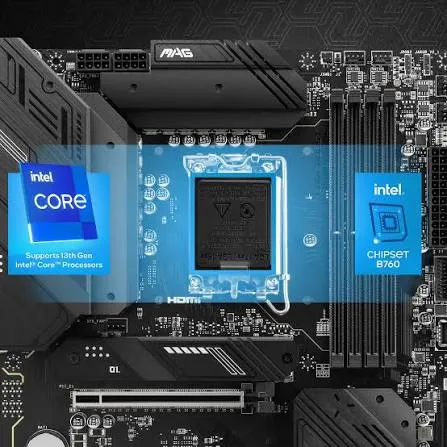

cpu support generations: Intel Core 12th Gen Processors, Intel Core 13th Gen Processors, Intel Core 14th Gen Processors
m2 slots detail: all PCIe 4.0 x4 with M.2 Shield Frozr
memory max gb: 128
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 5.0 x16 (Steel Armor), 1x PCIe 3.0 x16 @ x4
