TECHNICAL INDEX

Spesifikasi perangkat

Data teknis disusun per sistem agar lebih cepat dipindai dan dibandingkan.

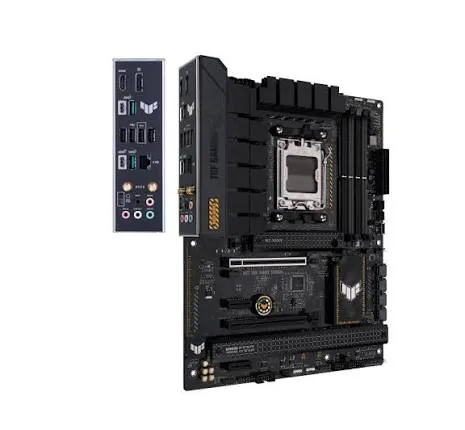

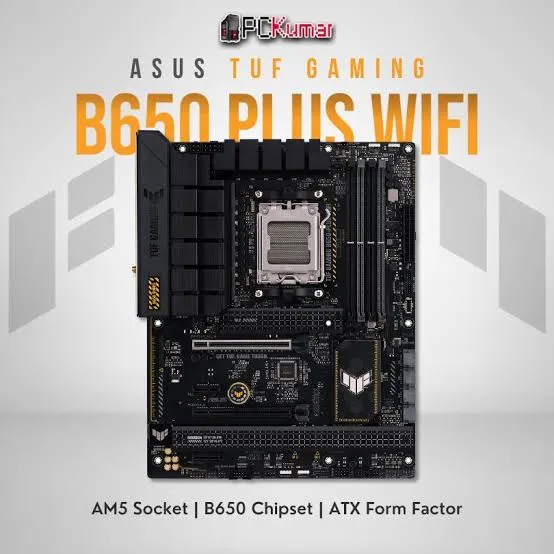

Prosesor: AMD B650 (Socket AM5 (LGA 1718)), ATX (305 x 244 mm), VRM 12+2 Power Stages (60A DrMOS)
Socket CPU: Socket AM5 (LGA 1718)
Chipset Kompatibel: AMD B650
Form Factor Motherboard: ATX (305 x 244 mm)
Kecepatan RAM Maksimal: DDR5-7600+ (OC) / AMD EXPO & Intel XMP
Jumlah Port SATA: 4
Fasa VRM & Desain Daya: 12+2 Power Stages (60A DrMOS)
Konektor Daya CPU: 1x 8-pin + 1x 4-pin ProCool EPS 12V
Tipe Memori (RAM): DDR5
Jumlah Slot DIMM: 4x DDR5 DIMM (Dual Channel)
Kapasitas RAM Maksimal: 192 GB (4x 48 GB)
Slot Ekspansi PCIe: 1x PCIe 4.0/5.0 x16 (CPU SafeSlot Core+), 1x PCIe 4.0 x16 @ x4, 2x PCIe 4.0/3.0 x1
Slot M.2 NVMe: 3x M.2 (1x PCIe 5.0 x4 CPU + 2x PCIe 4.0 x4 Chipset with M.2 heatsinks)
Port SATA 6Gb/s: 4x SATA 6Gb/s (RAID 0, 1, 10)

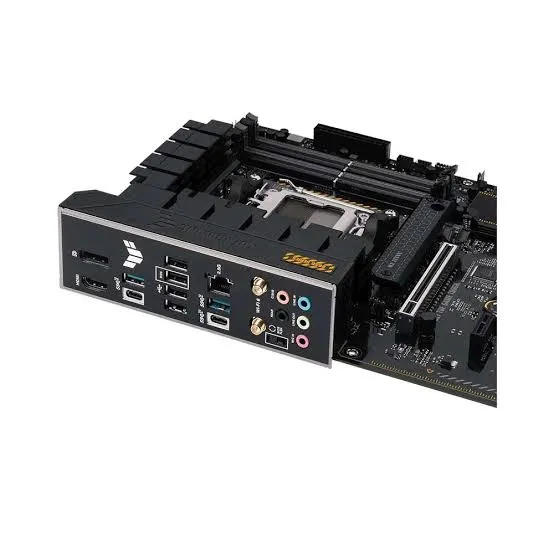

Port I/O Panel Belakang: 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 3x USB 3.2 Gen 2 (10Gbps), 4x USB 2.0, DisplayPort 1.4, HDMI 2.1
Jaringan (LAN & Wi-Fi): Realtek 2.5GbE LAN + Wi-Fi 6 (802.11ax) + Bluetooth 5.2
Subsistem Audio: Realtek 7.1 Surround Sound HD Audio CODEC + DTS Audio Processing
Fitur Kemudahan Rakit & Diagnostik: BIOS FlashBack Button, M.2 Q-Latch, Q-LED (CPU/DRAM/VGA/BOOT), SafeSlot Core+, TUF Protection
Memori: 4x DDR5 DIMM (Dual Channel) DDR5, Max 192 GB (4x 48 GB) (DDR5-7600+ (OC) / AMD EXPO & Intel XMP)
Penyimpanan: 3x M.2 (1x PCIe 5.0 x4 CPU + 2x PCIe 4.0 x4 Chipset with M.2 heatsinks), 4x SATA 6Gb/s (RAID 0, 1, 10)

Konektivitas: Realtek 2.5GbE LAN + Wi-Fi 6 (802.11ax) + Bluetooth 5.2, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 3x USB 3.2 Gen 2 (10Gbps), 4x USB 2.0, DisplayPort 1.4, HDMI 2.1

Rilis: 2024-01-01
Sumber harga: Authorized Distributor Indonesia 2024-2026
Harga diperbarui: 2026-09-07
cpu bios update notes: Ryzen 8000/9000 may require BIOS update on a 600-series board; verify motherboard revision and CPU Support List.
cpu support generations: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
m2 slots detail: 1x PCIe 5.0 x4 CPU, 2x PCIe 4.0 x4 Chipset with M.2 heatsinks
memory max gb: 192
memory module form factor: UDIMM
memory registered support: no
memory slots total: 4
pcie slots detail: 1x PCIe 4.0/5.0 x16 (CPU SafeSlot Core+), 1x PCIe 4.0 x16 @ x4, 2x PCIe 4.0/3.0 x1
